KSP1返回
Parker FEM
DNP PLT1
Faster 2FFI
Holmbury HP
Dixon HT
Stucchi FIRG
Eaton FF
Aeroquip FD89
Snap Tite 74
Voswinkel FF
Safeway S56
Tomco FE
Hansen 12FFP(S)106U
- 应用&特性
- 图纸&规格
- 技术&帽塞
产品特性：
按照标准ISO16028生产
采用优质钢加工
具有两端齐平特点，使用时不易使外界灰尘以及异物进入,清洁方便。
单手操作，连接断开便捷，泄漏量极少。
带有安全锁定功能，防止非工作状态时断开。
平面2”公接头带泄压装置
应用场合：
该系列的快速切换，易于清洗等特点使之主要应用于恶劣工况下的工程设备及液压工具
产品规格：
标准：ISO 16028
材质：主体优质钢镀锌/锌镍
密封件: 标准NBR丁腈橡胶， FKM,PU&EPDM可供选择
背托环: PTFE
工作温度: 用标准密封圈 -25℃ + 125℃

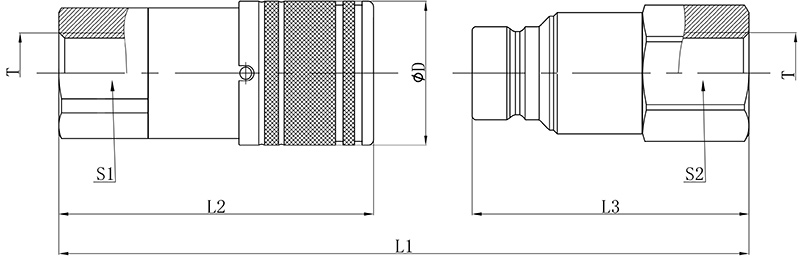

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接头编号 | 公接头编号 |
| 04 | 6.3 | 96.7 | 59.0 | 48.0 | 28.0 | 22.0 | 22.0 | 1/4"BSP | KSP1-04-04F-BSP | KSP1-04-04M-BSP |
| 1/4"NPT | KSP1-04-04F-NPT | KSP1-04-04M-NPT | ||||||||
| 22.0 | 24.0 | 3/8"BSP | KSP1-04-06F-BSP | KSP1-04-06M-BSP | ||||||
| 3/8"NPT | KSP1-04-06F-NPT | KSP1-04-06M-NPT | ||||||||
| 06 | 10 | 119.0 | 67.3 | 67.5 | 32.0 | 27.0 | 27.0 | 3/8"BSP | KSP1-06-06F-BSP | KSP1-06-06M-BSP |
| 3/8"NPT | KSP1-06-06F-NPT | KSP1-06-06M-NPT | ||||||||
| 1/2"BSP | KSP1-06-08F-BSP | KSP1-06-08M-BSP | ||||||||
| 1/2"NPT | KSP1-06-08F-NPT | KSP1-06-08M-NPT | ||||||||
| 08 | 12.5 | 139.3 | 83.0 | 73.0 | 38.0 | 32.0 | 32.0 | 1/2"BSP | KSP1-08-08F-BSP | KSP1-08-08M-BSP |
| 1/2"NPT | KSP1-08-08F-NPT | KSP1-08-08M-NPT | ||||||||
| 36.0 | 36.0 | 3/4"BSP | KSP1-08-12F-BSP | KSP1-08-12M-BSP | ||||||
| 3/4"NPT | KSP1-08-12F-NPT | KSP1-08-12M-NPT | ||||||||
| 12 | 20 | 160.0 | 95.5 | 86.0 | 48.0 | 46.0 | 41.0 | 3/4"BSP | KSP1-12-12F-BSP | KSP1-12-12M-BSP |
| 3/4"NPT | KSP1-12-12F-NPT | KSP1-12-12M-NPT | ||||||||
| 1"BSP | KSP1-12-16F-BSP | KSP1-12-16M-BSP | ||||||||
| 1"NPT | KSP1-12-16F-NPT | KSP1-12-16M-NPT | ||||||||
| 16 | 25 | 177.5 | 109.5 | 90.5 | 55.0 | 50.0 | 50.0 | 1"BSP | KSP1-16-16F-BSP | KSP1-16-16M-BSP |
| 1"NPT | KSP1-16-16F-NPT | KSP1-16-16M-NPT | ||||||||
| 55.0 | 55.0 | 1-1/4"BSP | KSP1-16-20F-BSP | KSP1-16-20M-BSP | ||||||
| 1-1/4"NPT | KSP1-16-20F-NPT | KSP1-16-20M-NPT |

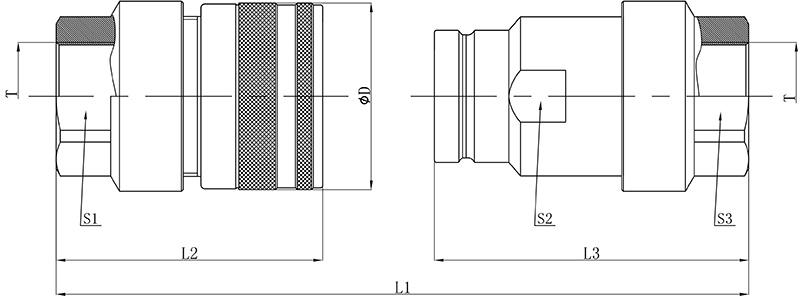

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | S3 | T | 母接头编号 | 公接头编号 |
| 24 | 40 | 222.7 | 132 | 119.7 | 80 | 65 | 70 | 1 1/2" BSP | KSP1-24-24F-BSP | KSP1-24-24M-BSP | |
| 1 1/2" NPT | KSP1-24-24F-NPT | KSP1-24-24M-NPT | |||||||||
| 32 | 50 | 284 | 147.3 | 173.2 | 103 | 80 | 83 | 80 | 2" BSP | KSP1-32-32F-BSP | KSP1-32-32M-BSP |
| 2" NPT | KSP1-32-32F-NPT | KSP1-32-32M-NPT |
技术特性：
| 规格 | 最大工作压力 | 额定流量 | 最大流量 | 最小爆破压力 | 液体溢出量 | ||||||
| 接头体 | 接头套 | 连接下 | |||||||||
| LPH | ISO | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 300 | 12 | 24 | 1800 | 1200 | 1400 | 0.008 | |||
| 06 | 10 | 250 | 23 | 46 | 1600 | 1000 | 1600 | 0.010 | |||
| 08 | 12.5 | 250 | 45 | 90 | 1500 | 1100 | 1900 | 0.012 | |||
| 12 | 20 | 250 | 100 | 200 | 1400 | 1100 | 1400 | 0.020 | |||
| 16 | 25 | 250 | 189 | 280 | 1300 | 1000 | 1400 | 0.030 | |||
| 24 | 40 | 200 | 379 | 700 | 1200 | 1100 | 1100 | 0.050 | |||
| 32 | 50 | 150 | 757 | 1000 | 700 | 650 | 650 | 0.100 | |||

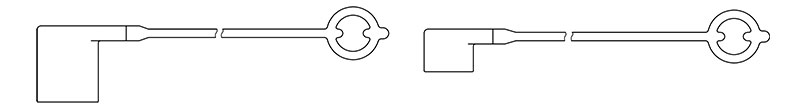

防尘帽塞：
| LPH | ISO | 母接头防尘帽 | 公接头防尘帽 | 材质 | 颜色 | ||
| 04 | 6.3 | KSP-04-PDC | KSP-04-PDP | 塑料 | 红色 | ||
| 06 | 10 | KSP-06-PDC | KSP-06-PDP | 塑料 | 红色 | ||
| 08 | 12.5 | KSP-08-PDC | KSP-08-PDP | 塑料 | 红色 | ||
| 10 | 16.0 | KSP-10-PDC | KSP-10-PDP | 塑料 | 红色 | ||
| 12 | 20 | KSP-12-PDC | KSP-12-PDP | 塑料 | 红色 | ||
| 16 | 25 | KSP-16-PDC | KSP-16-PDP | 塑料 | 红色 | ||

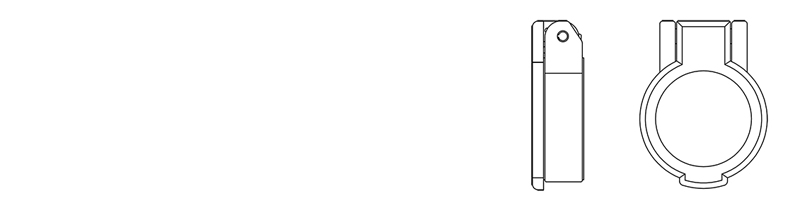

| LPH | ISO | 母接头防尘帽 | 材质 | 颜色 | |
| 08 | 12.5 | KSP-PP-08 | 塑料 | 红色 | |
